Spirobank II Plus

Portable spirometry, redefined. Stand Alone, PC, Tablet

SPIROBANK II PLUS-5
SPIROBANK II PLUS-10
SPIROBANK II PLUS-6
SPIROBANK II PLUS-9

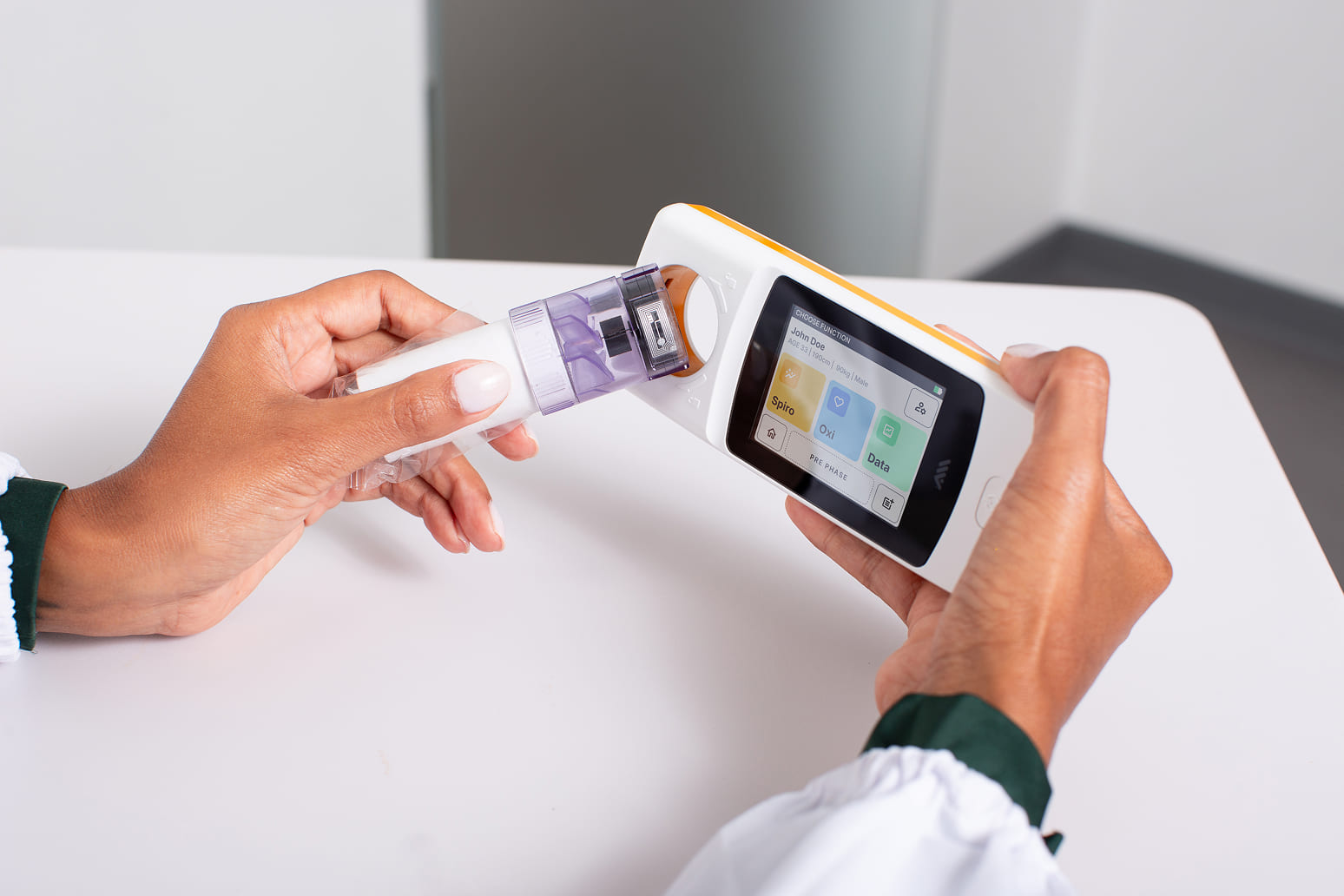

SPIROBANK II PLUS-8
SPIROBANK II PLUS-7
SPIROBANK II PLUS-5
SPIROBANK II PLUS-10
SPIROBANK II PLUS-6
SPIROBANK II PLUS-9
SPIROBANK II PLUS-8
SPIROBANK II PLUS-7

  • Color TouchscreenNouveau

  • Work ListNouveau

  • RFID TechnologyNouveau

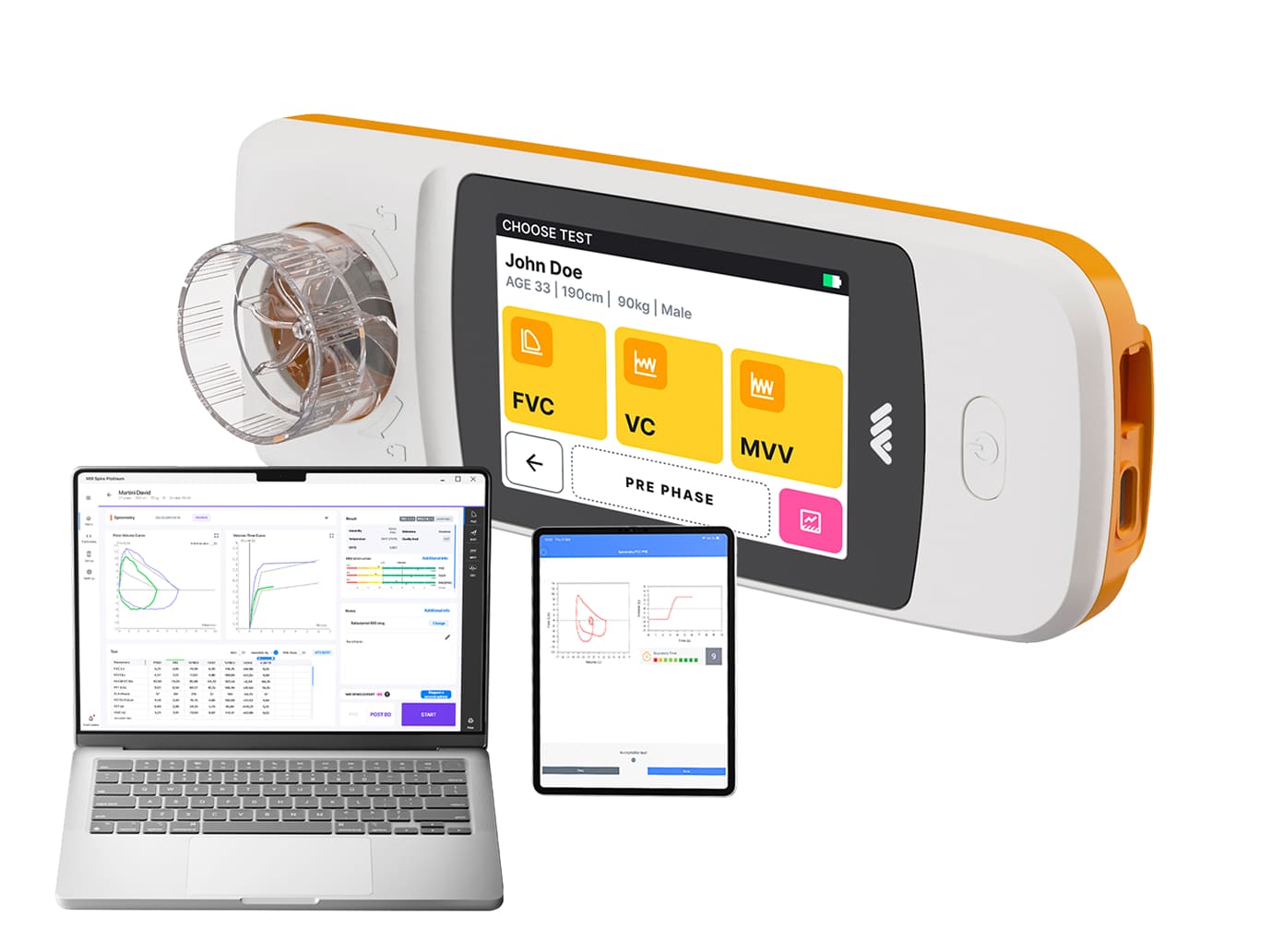

  • Stand Alone, PC, Tablet

  • EMR Integration

  • OximetryOptional

Spirobank II Plus is MIR’s next-generation portable spirometer with an optional oximetry module, designed to deliver accurate and reliable testing wherever it is needed. Compact and versatile, it introduces a color touchscreen display that enhances usability and data visualization at every stage of the test.

With Work List functionality, Spirobank II Plus enables seamless communication with MIR Spiro Software and EMR systems, allowing patient data import and result synchronization via USB and Bluetooth. It supports three operating modes — stand-alone, PC, and tablet — adapting to different clinical environments and workflows.

The spirometer allows real-time display of spirometric tests on the device screen, on Tablet via the free dedicated MIR Spiro App, and on PC via the MIR Spiro Software. Calibration can be performed directly from the device. It operates both in Stand-Alone mode and connected to a PC via USB cable.

Spirobank II Plus is compliant with the latest international standards and recommendations for spirometry and oximetry, including ATS/ERS guidelines, ISO 26782:2009, ISO 23747:2015, ISO 80601-2-61, and other applicable international standards.

Distinctive features

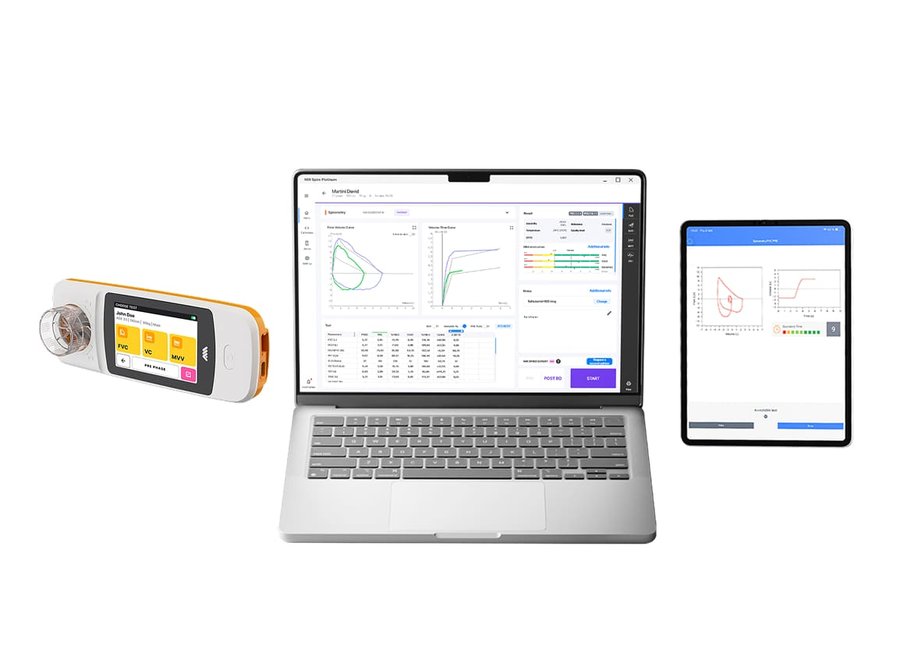

3 Operating Modes

Use the device in stand-alone mode or connected to a PC or tablet, depending on your needs

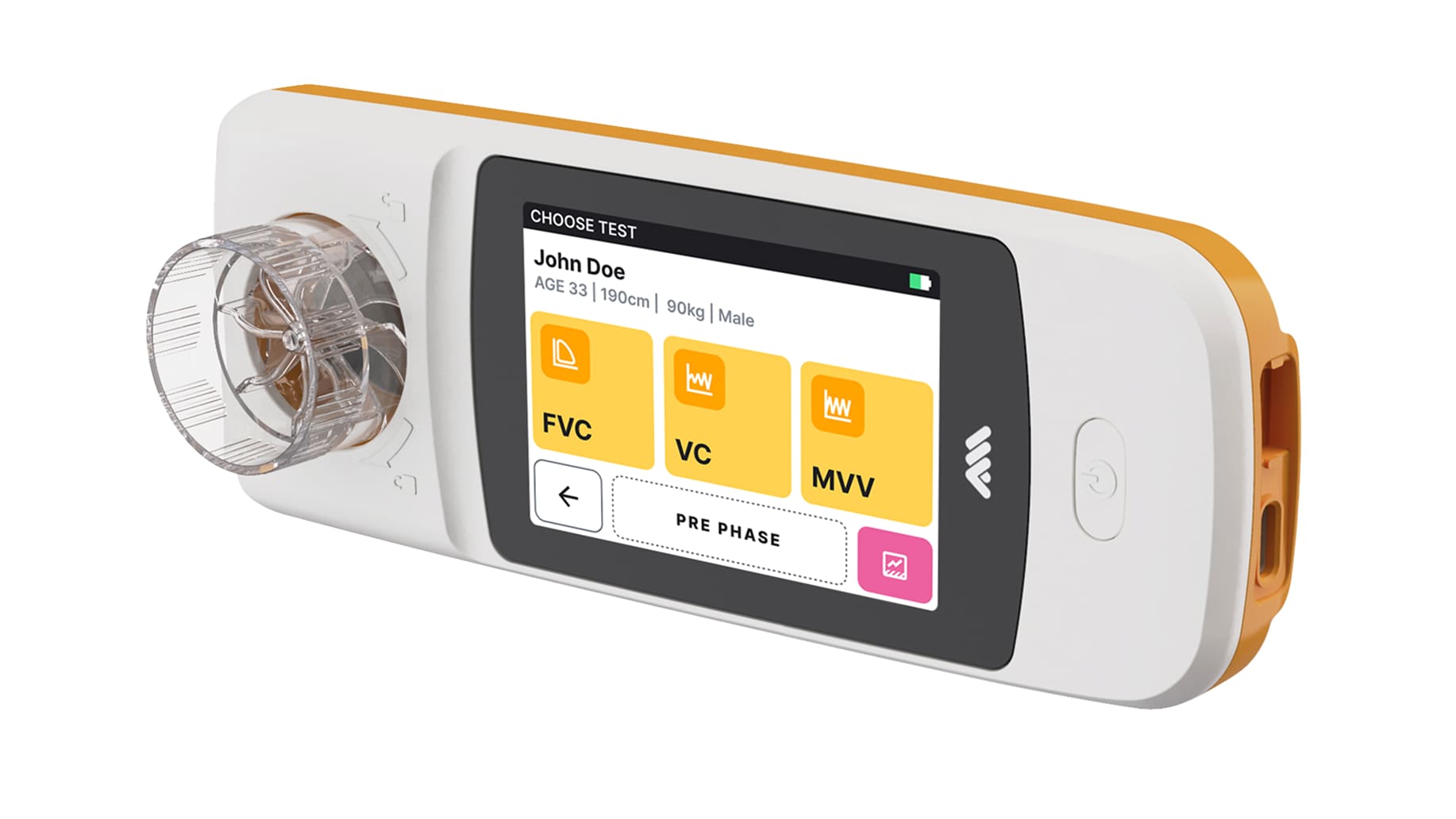

Color Touchscreen DisplayNouveau

320 × 240 resolution for clear and intuitive data visualization during every stage of the test

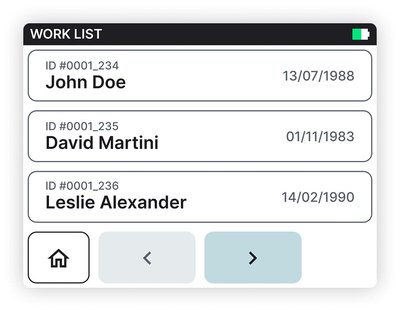

Work List ManagementNouveau

Receive patient lists from MIR Spiro Software via USB or Bluetooth

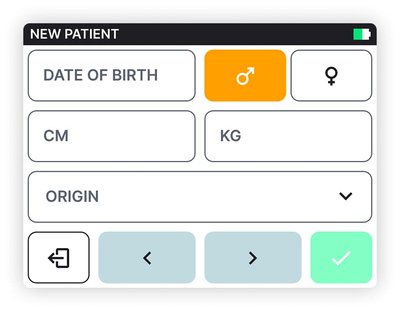

Patient Data RegistrationNouveau

Oximetry module for measuring blood oxygen saturation

External PrintingNouveau

Print test results via USB or Bluetooth using external PostScript printers

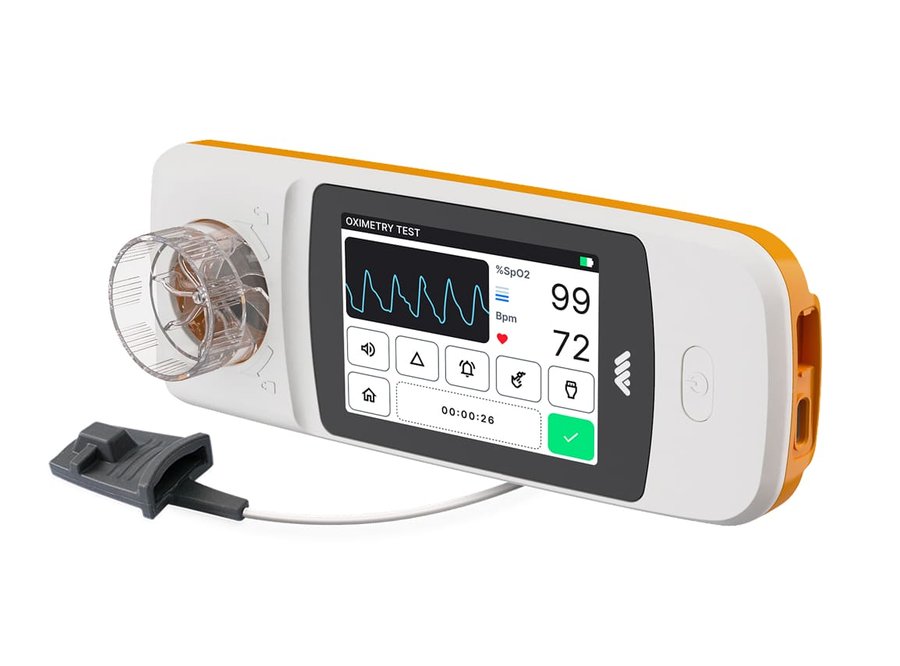

SpO₂ SensorOptional

Integrated oximetry module for measuring blood oxygen saturation.

Toutes les fonctionnalités

  • 3 Operating Modes

    Use the device in stand-alone mode or connected to a PC or tablet, depending on your needs.

  • Interpretation FlexibilityNouveau

    Supports both ATS/ERS 2019 and ATS/ERS 2021 interpretative criteria, allowing physicians to choose their preferred standard.

  • Direct Test AnnotationsNouveau

    Add clinical notes to patient tests from the device

  • EMR/EHR Integration

    Seamless integration via MIR Spiro Software with EMR/EHR systems using HL7, GDT, FHIR, and Exchange Protocol.

  • Real-Time Testing

    FVC, VC, MVV, PRE/POST bronchodilator comparison, SpO₂ and BPM spot testing (Optional)

  • On-Device Calibration (ATS/ERS 2021)

    Executable directly on device

  • Pediatric Incentive

    Real-time animation both on the device screen and in PC mode via MIR Spiro Software to improve patient compliance during the test

  • Traffic Light System

    Immediate visual feedback to support test quality and interpretation.

  • Predicted Values

    Wide selection of predicted values including GLI, and ERS, among others, directly on the device, on Tablet, and PC

  • Integrated Temperature Sensor

    Automatic BTPS conversion for accurate and standardized measurements.

  • Larger Internal Memory

    Store up to 15,000 spirometry tests or 750 hours of oximetry recordings

  • Long-Lasting Rechargeable Battery

    Extended autonomy in stand-alone mode

Devenez revendeur

Intéressé à devenir revendeur ? En savoir plus sur les exigences et comment devenir un revendeur officiel MIR.

S'inscrire

Technologie

Flowmir Plus, Disposable Turbine

Disposable turbine with integrated RFID technology, individually packaged

Reusable Turbine Plus

Reusable turbine with integrated RFID technology, individually packaged

ATS / ERS
Compliant for Accuracy

 flowmir-mockup 1

Flowmir Plus, Disposable Turbine

 Container

Reusable Turbine Plus

ATS / ERS
Compliant for Accuracy

 flowmir-mockup 1

Flowmir Plus, Disposable Turbine

 Container

Reusable Turbine Plus

Mouthpiece

 To be purchased separately To be purchased separately

RFID

 Automatic turbine type recognition, Calibration stored on RFID, Turbine traceability Automatic turbine type recognition, Calibration stored on RFID, Turbine traceability

Turbine Disinfection

 Not Required Required

Turbine Calibration

 Not required but available at any time Not required for first use but available at any time

Packaging

 Individually sealed in carton dispenser, 60 pcs or 20 pcs Individually sealed in carton box

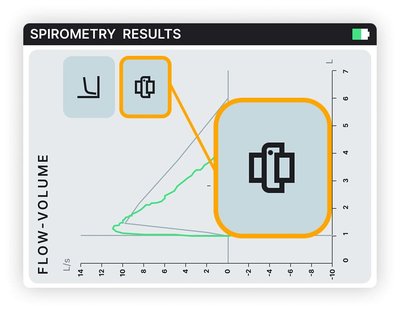

MIR Plus turbines integrate RFID technology that communicates directly with the built-in tag reader inside Plus devices. Plus Turbines are the first ones to establish direct communication with MIR’s professional devices ensuring highly accurate measurements and optimizing workflows.

The built-in reading and writing system allows turbines to transmit and receive key data, i.e. calibration and automatic turbine type recognition.  The interaction between sensor and device eliminates manual setup, reduces user error, and supports consistent performance with every test. Flowmir Plus and Reusable Plus technologies deliver accurate and repeatable measurements, including in low-flow conditions.

How it works

Contrôle des infections

Choisissez le filtre Neumofilt Ergo (bec de canard) pour une protection supplémentaire!
With exceptional bacterial and viral filtration efficiency, this filter is the ideal choice to ensure maximum safety and protection in respiratory measurements.
The Neumofilt Ergo filter is designed to allow the patient to achieve a tight seal with the lips around the nozzle, preventing air leaks during testing. Its optimized resistance ensures smooth airflow, ensuring precise measurements without compromising patient comfort and measurement accuracy.

Eliminate time spent on cleaning, eliminate the risk of cross-contamination. No special storage conditions are required.
