Emphysema Severity Index
Spirolab ESI
All-in-one desktop spirometer
Built for integration with MIR professional spirometry devices and reporting workflows.
Product gallery, key features and downloads are below.
-
-
7'' touchscreen display
-
Embedded thermal printer
-
Calibration executable on device
-
Real-time-tests on the device

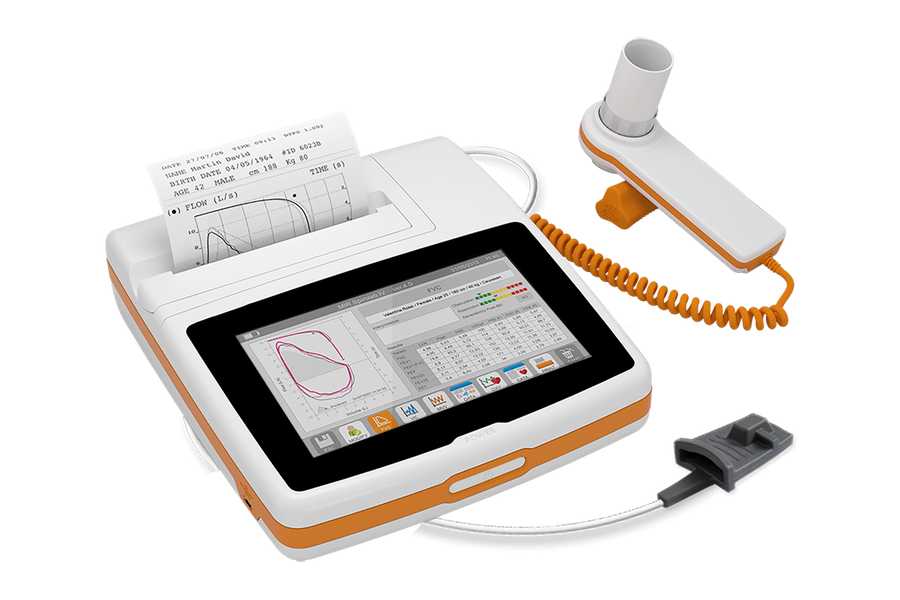

Spirolab is a complete desktop spirometer with an oximetry option. Equipped with a 7'' color touchscreen and an embedded thermal printer, Spirolab is the all-in-one spirometer for rapid and comprehensive reporting - without needing a computer!
The long-lasting rechargeable battery and large internal memory make Spirolab the ideal device to take anywhere.
Real-time testing and pediatric incentive are available on the device's display. Calibration can be performed directly from the device. It operates both in Stand-Alone mode and connected to a PC via USB cable.
All the features
-
All-in-one
Complete all-in-one spirometer to perform tests without the need for a computer
-
EMR/EHR connectivity
Integration via MIR Spiro Software with EMR/EHR (in HL7, GDT, FHIR, EXCHANGE PROTOCOL)
-
Embedded thermal printer
Customizable printing and immediate detailed test reports. 80<120 prints with a single roll. (Paper size 112 mm; Paper weight 56g +/- 4 gr/m2). *The use of non-original MIR paper rolls or with a higher grammage than indicated could irreparably damage the printer.
-
Real-time testing
Real-time test displayed both on the device screen and on the PC via MIR Spiro Software Spirometry: FVC, VC, MVV, PRE/POST bronchodilator comparison Oximetry (optional): Spot test (SpO2%, BPM)
-
Pediatric incentive
Real-time animation both on the device screen and in PC mode via MIR Spiro Software to improve patient compliance during the test
-
Predicted values
Wide selection of predicted values including GLI, and ERS, among others, directly on the device and in PC mode
-
Long-lasting rechargeable battery
Long-lasting rechargeable lithium battery for extended autonomy in Stand-Alone mode
-
Large internal memory
Storage up to 10.000 spirometric tests or 500 hours of oximetry
-
Integrated temperature sensor
Automatic BTPS conversion
-
Traffic light system
Integrated traffic light system
-
SpO2% sensor
Oximetry sensor to detect blood oxygen saturation
