• Complete

  • 7'' touchscreen display

  • Embedded thermal printer

  • Calibration executable on device

  • Real-time-tests on the device

Spirolab is a complete desktop spirometer with an oximetry option. Equipped with a 7'' color touchscreen and an embedded thermal printer, Spirolab is the all-in-one spirometer for rapid and comprehensive reporting - without needing a computer!

The long-lasting rechargeable battery and large internal memory make Spirolab the ideal device to take anywhere.

Real-time testing and pediatric incentive are available on the device's display. Calibration can be performed directly from the device. It operates both in Stand-Alone mode and connected to a PC via USB cable.

Compliance with the latest guidelines and international standards for spirometry (ATS/ERS 2005 + 2019 update; ISO 23747:2015; ISO 26782:2009), oximetry (ISO 80601-2-61:2017), and many others.

All the features

  • All-in-one

    Complete all-in-one spirometer to perform tests without the need for a computer

  • EMR/EHR connectivity

    Integration via MIR Spiro Software with EMR/EHR (in HL7, GDT, FHIR, EXCHANGE PROTOCOL)

  • Embedded thermal printer

    Customizable printing and immediate detailed test reports. 80<120 prints with a single roll. (Paper size 112 mm; Paper weight 56g +/- 4 gr/m2). *The use of non-original MIR paper rolls or with a higher grammage than indicated could irreparably damage the printer.

  • Real-time testing

    Real-time test displayed both on the device screen and on the PC via MIR Spiro Software Spirometry: FVC, VC, MVV, PRE/POST bronchodilator comparison Oximetry (optional): Spot test (SpO2%, BPM)

  • Pediatric incentive

    Real-time animation both on the device screen and in PC mode via MIR Spiro Software to improve patient compliance during the test

  • Predicted values

    Wide selection of predicted values including GLI, and ERS, among others, directly on the device and in PC mode

  • Long-lasting rechargeable battery

    Long-lasting rechargeable lithium battery for extended autonomy in Stand-Alone mode

  • Large internal memory

    Storage up to 10.000 spirometric tests or 500 hours of oximetry

  • Integrated temperature sensor

    Automatic BTPS conversion

  • Traffic light system

    Integrated traffic light system

  • SpO2% sensor

    Oximetry sensor to detect blood oxygen saturation

Become a Dealer

Interested in Becoming a Dealer? Learn more on the requirements and how to become an official MIR dealer.

Technology

FlowMIR is the turbine compatible with the professional devices Minispir, Minispir Light, Spirolab, Spirodoc, Spirobank II Smart, Spirobank II Advanced, Spirobank II Basic.

ATS / ERS
Compliant for Accuracy

flowmir-scatola-10-e-60

FlowMIR Disposable Turbine

reusable turbine flowmeter with wire mesh for use with plastic and paper mouthpiece.|||||||||||||||||||||FlowMIR pre-calibrated, disposable turbines with cardboard mouthpiece single patient use.

Reusable Turbine Flowmeter

ATS / ERS
Compliant for Accuracy

flowmir-scatola-10-e-60

FlowMIR Disposable Turbine

reusable turbine flowmeter with wire mesh for use with plastic and paper mouthpiece.|||||||||||||||||||||FlowMIR pre-calibrated, disposable turbines with cardboard mouthpiece single patient use.

Reusable Turbine Flowmeter

Mouthpiece

Included To be purchased separately

Antiviral Filter

Not required To be purchased separately

Turbine Disinfection

Not required Required

Turbine Calibration

Not required but available via software at any time Not required but available via software at any time

Packaging

Individually sealed in carton dispenser (60pcs or 10pcs) Carton box

Infection control

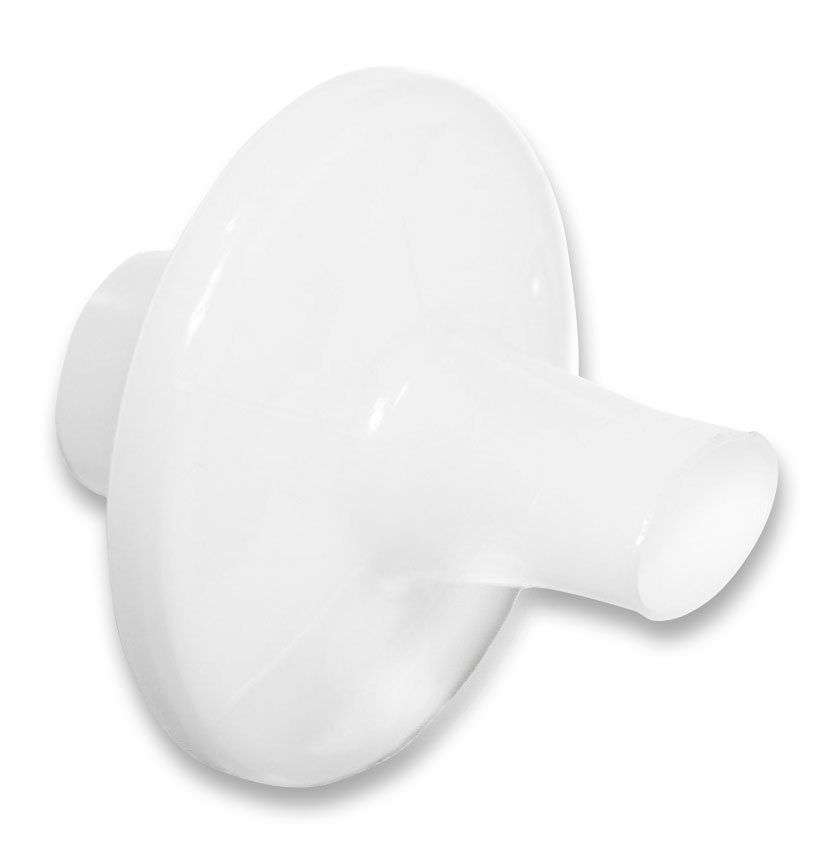

Choose the Neumofilt Ergo filter for additional protection! With exceptional bacterial and viral filtration efficiency, this filter is the ideal choice to ensure maximum safety and protection in respiratory measurements. The Neumofilt Ergo filter is designed to allow the patient to achieve a tight seal with the lips around the nozzle, preventing air leaks during testing. Its optimized resistance ensures smooth airflow, ensuring precise measurements without compromising patient comfort and measurement accuracy. Eliminate time spent on cleaning, eliminate the risk of cross-contamination. No special storage conditions are required.
Sdk

MIR Spiro Platinum

Enjoy your Platinum experience!

  • Comprehensive Software for Spirometry and Oximetry
  • Designed to be integrated with EMR/EHR
  • Compliant with the latest ATS/ERS guidelines
  • Available for desktop and laptop
  • MacOS and Windows
Sdk

With your Platinum subscription plan, you will have uninterrupted access to all features of MIR Spiro, exchange data unlimitedly and free of charge between MIR Spiro and remote platforms, and access extra content while staying updated on the latest trends, all without limits!

Additionally, you will have access to free technical support from a MIR operator ready to assist you wherever and whenever you need. Includes 1 remote technical assistance.

Experience the best, choose MIR Spiro Platinum.
